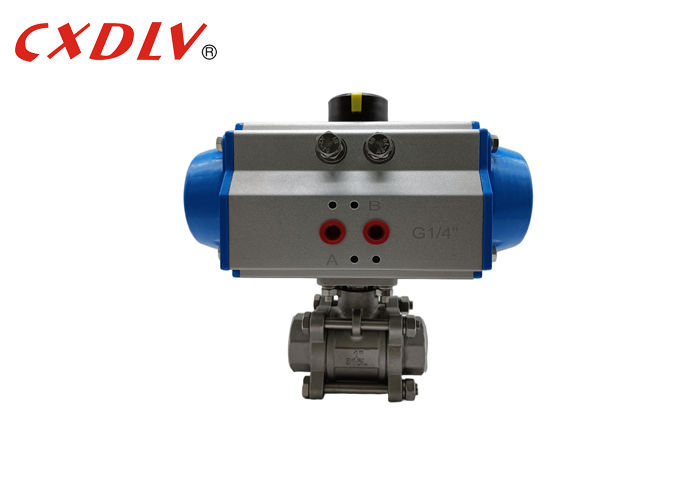

Convenient Monitoring Pneumatic Actuated Ball Valve for Seamless Integration with Limit Switch Box

PN16 Pneumatic Actuated Ball Valve Double Acting Piston Double Flange Ends

 Specifications

• Rack and pinion design rotary quarter turn pneumatic actuator
• Double Acting or Spring Return Version
• ISO5211, DIN3337 and Namur interfaces for easy mounting to valve, limit switch box and positioner
• Suitable for indoor and outdoor application
• Torque output from 3Nm to 13,024Nm (DA version) and 4Nm to 6,584Nm (SR version)
• Aluminium alloy housing with nickel plated pinion
• Travel angle 90° with travel stop adjustment of ± 5℃
• Operating pressure from 2 bar up to 8 bar at temperature from -20℃ to +80℃

 Advantage
1. Type Three Piece : Full Bore : Pneumatically Actuated (Single or Double Acting)
2. Size & Connections 6mm (1/4″) to 100mm (4″) BSP Female (NPT, BSPT on request)
3. Duty Air : Inert Gas : Oil : Process : Steam : Water
4. Materials Stainless Steel Body, Ball & Stem : RPTFE Seat

 Technical Data
Double Acting Pneumatic Actuator Ordering No.


 Accessories which can use with this Ball Valve
On/off Indicator
Namur Standard Solenoid Valve in all Standard
Pneumatic & Electric-Pneumatic Valve Positioner
Declutchable Manual Override
Limit Switches for On/Off Indication at Panel Board
Filter + Regulator Combination with Pressure Gauge

 Model Selection
3PC Thread Pneumatic Ball Valve
