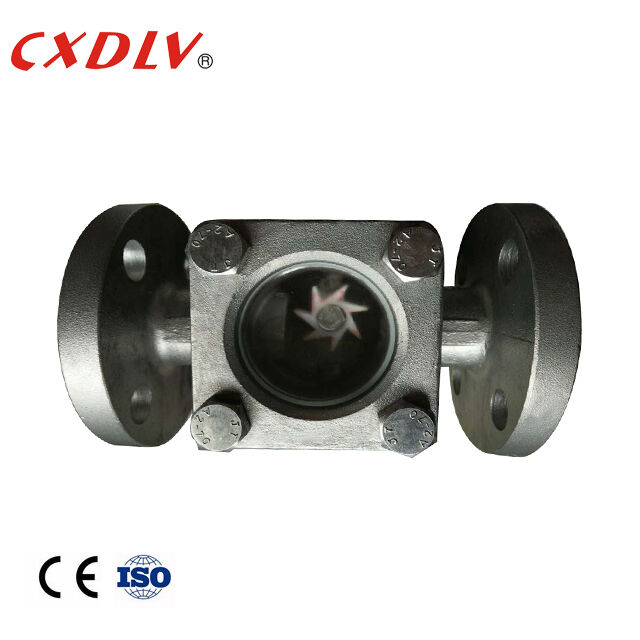

Double Flange Flanged Sight Glass Sight With propeller Flow Indicator for Industrial with ANSI Pressure Rating
পণ্যের বিবরণ:
| উৎপত্তি স্থল: | চীন |
| পরিচিতিমুলক নাম: | CXDLV |
| সাক্ষ্যদান: | CE&ISO |
| মডেল নম্বার: | এসজি-জেডটি |
প্রদান:
| ন্যূনতম চাহিদার পরিমাণ: | 1 পিসি |
|---|---|
| মূল্য: | T/T, L/C, D/A, D/P, Western Union, MoneyGram |
| প্যাকেজিং বিবরণ: | বিভিন্ন ভালভ কাঠামো অনুযায়ী উপযুক্ত পাতলা পাতলা কাঠের মামলা |
| ডেলিভারি সময়: | 5 ~ 25 কাজের দিন |
| যোগানের ক্ষমতা: | 1000 পিসি/সোম |
|
বিস্তারিত তথ্য |
|||
| উপাদান: | CF8, CF3, CF8M... | গ্লাস: | বোরোসিলিকেট |
|---|---|---|---|
| গঠন: | ভিতরে বল | গ্লাসকেট: | Ptfe |
| তাপমাত্রা: | 20 ℃ ~ 185 ℃ ℃ | সংযোগ: | 150LB RF |
| আকার: | 1/2 "~ 8" | ||
| বিশেষভাবে তুলে ধরা: | Double flange sight glass with propeller,Flanged sight glass ANSI pressure rating,Industrial sight glass flow indicator |
||
পণ্যের বর্ণনা
Double Flange Flanged Sight Glass Sight With propeller Flow Indicator for Industrial with ANSI Pressure Rating
Product Feature
A Sight Flow Indicator is a device installed into a pipe to provide a visual of verifying liquid flow for direction and accurate flow rate. Sight Flow Indicators allow operators to observe the color and clarity of liquids through a window. A sight flow indicator is a body with one or more viewing windows,usually with gasket,and a way to mount the indicator to the pipeline,such as flanged,threaded connections.Sight flow indicator are available to fit standard pipe ranging from 1/2"~8" and carry ANSI pressure rating.
Double Flange Sight Glass
Applicable Standards:
- Design and Manufacturing: ASTM B16.34
- Flange Connection: ASTI16.5
- Test and Inspection: API598
Size Range:
- 1/2"~8"
Pressure Rating:
- ANSI 300LB
Temperature Range:
- -20°C~185°C
Double Window Sight Glass is a simple assembly of two glasses on single cast or fabricated body at two opposite sides. Use of these types of flow indicator is for spot inspection and view of process parameter.
Salient Features
Easy Maintenance
Available in all most all Material of Construction
Manufactured to the Highest Standard
Durable Construction
Material Test Certificate & Pressure Test Certificates furnished on request.
Technical Data
| Size | Dimension(mm) | ||||||
| H | L | D | D1 | D2 | b | Z-d | |
| 2" | 140 | 230 | 162 | 127 | 92 | 23 | 8-19 |
| 6" | - | 420 | 318 | 270 | 216 | 36.5 | 12-22 |
Package&Delivery
Packing Details: We choose suitable wood cases according to different valves and arrange skilled workers to pack in case of bruise. Long term cooperated forwarder will book space, clear customs and transport for us without delay. There are three ways for transportation, by sea, by air and by train. We will arrange transportation according to customers' needs.
Delivery Details: according to the order, 7~60days
